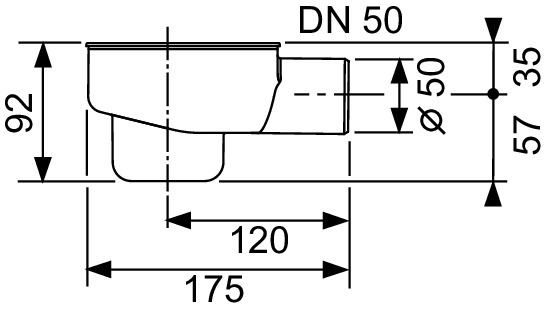

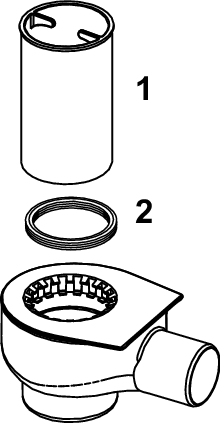

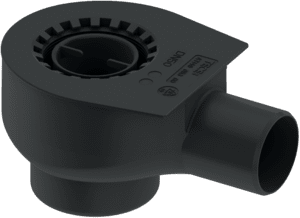

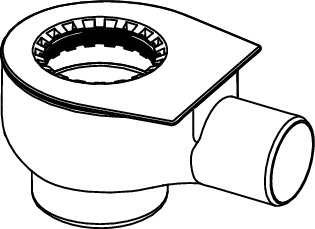

Drain for TECEdrainline shower channel to fit to the channel body, drain can be turned 360°, for lateral connection to DN 50 drain pipe, with removable siphon immersion pipe. installation height from bottom edge of drain to upper edge of shower channel = 120 mm Sealing water height = 50 mm Drainage capacity to EN 1253, with 10/20 mm build-up above grate: Design grate "basic": 0.8/0.9 l/s Design grate "steel II": 0.7/0.8 l/s Tileable channel "plate"/"plate II": 0.7/0.8 l/s
